Symptom

  • Environment: After abnormal node reboot in Ceph cluster
  • Affected Metric: Prometheus rate value of ceph_osd_op_w_latency
  • Behavior:
    • Pre-reboot: Values showed normal increment (peak ~1M)
    • Post-reboot:
      • Started recording from 0
      • Spiked to 4.2B after 3 minutes (close to 2³²)

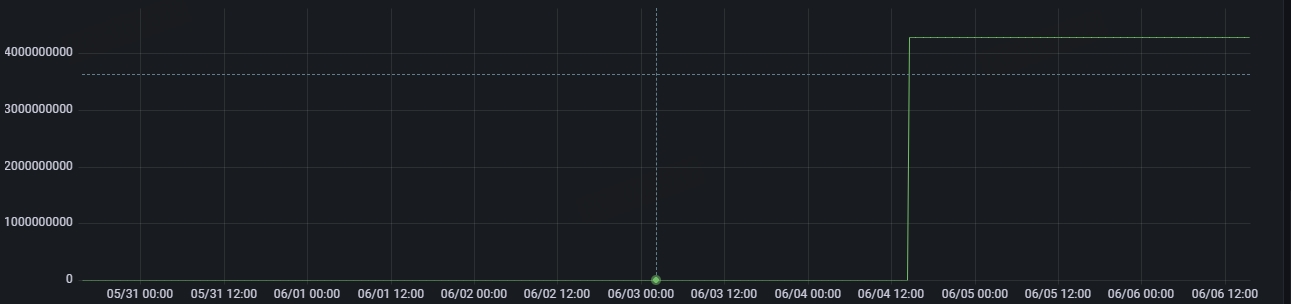

      • 1cbdc1281f3f34a96a1cf40b55d69e44.jpg|600

Investigation Process

Phase 1: Initial Hypotheses

Hypothesis Verification Method Conclusion
Prometheus calculation Reviewed rate() function Confirmed proper counter reset
Ceph stat initialization Inspected OSD.cc init code Verified proper atomic init

Phase 2: Deep Analysis

  1. Key Findings:

    • 3-minute zero period before spike
    • 4.2B spike caused axis display anomaly

  2. Mechanism Analysis:

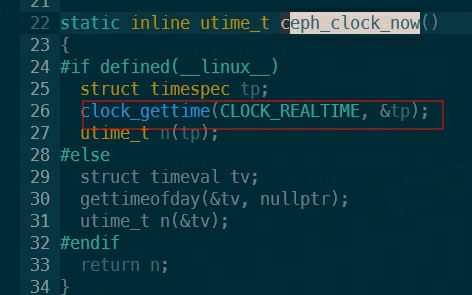

    • Uses system realtime clock for time delta
    • No negative value protection

Phase 3: Verification

  1. Environmental Evidence:

    • NTP logs showed 4ms time reversal
    • image.png|600

  2. Reproduction Method:

    • Applied IO load via fio
    • Manually rewound system time by 1ms
    • Successfully reproduced the spike

Root Cause

  1. Direct Cause:

    • System time reversal caused negative time delta
    • Unsigned integer conversion

  2. Underlying Cause:

Solution

  1. Long-term Improvement:
    • Promote complete migration to monotonic clock
    • Or add time delta validation logic
  2. Reported issue on official Slack https://tracker.ceph.com/issues/71580, currently being addressed by maintainers https://github.com/ceph/ceph/pull/64003
