MDS 系统架构概览

Ceph MDS是CephFS (Ceph File System) 的核心组件，负责处理所有文件系统元数据操作。MDS的设计采用分布式、可扩展的架构，支持多活MDS和动态负载均衡。

MDS在Ceph生态中的定位

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37

graph TB
    Client[CephFS Client] --> MDS[MDS Cluster]
    MDS --> RADOS[RADOS Storage Layer]
    MDS --> Mon[Monitor Cluster]

    subgraph "MDS In Ceph"
        subgraph "Client Layer"
            Client
            Fuse[FUSE Client]
            Kernel[Kernel Client]
        end

        subgraph "Metadata Layer"
            MDS
            MDSStandby[Standby MDS]
            MDSActive[Active MDS]
        end

        subgraph "Storage Layer"
            RADOS
            OSD[OSD Cluster]
            Pool[Metadata Pool]
        end

        subgraph "Management Layer"
            Mon
            Mgr[Manager]
        end
    end

    Client -.-> Fuse
    Client -.-> Kernel
    MDS --> MDSStandby
    MDS --> MDSActive
    RADOS --> OSD
    RADOS --> Pool
    Mon --> Mgr

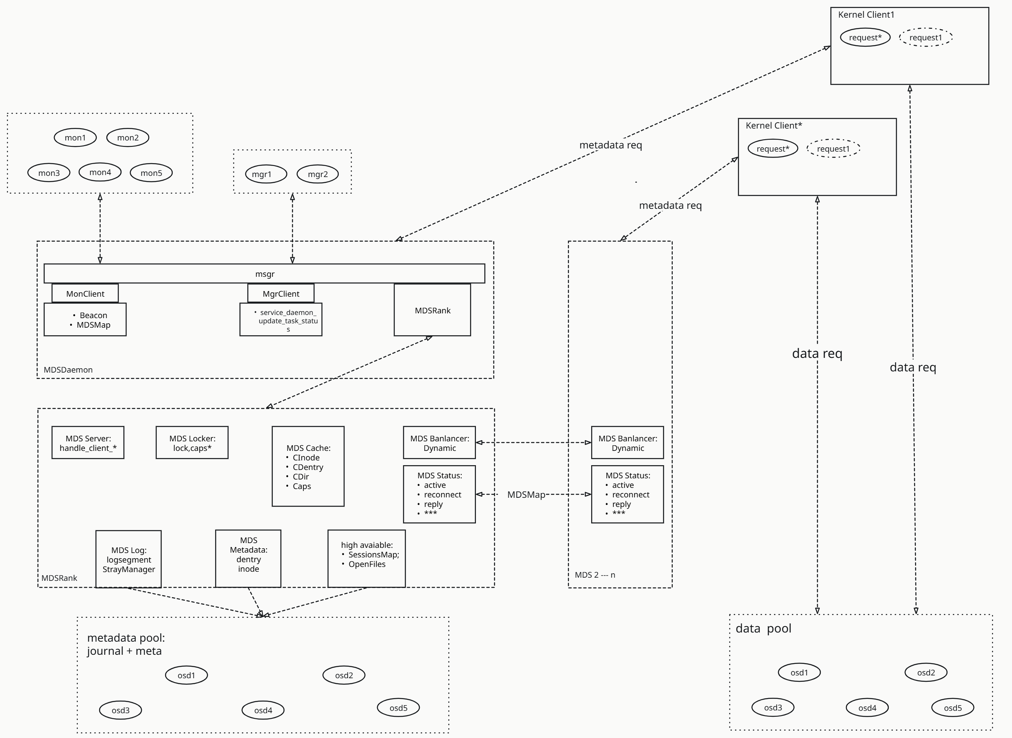

MDS 模块架构

image.png|600

MDS 核心子模块架构分析

MDSMap 管理模块

MDSMap是MDS集群状态管理的核心模块，负责维护MDS集群的拓扑信息和状态。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

graph LR
    subgraph "MDSMap Module"
        MDSMap[MDSMap Manager]
        ActiveMDS[Active MDS List]
        StandbyMDS[Standby MDS List]
        FSMap[Filesystem Map]

        MDSMap --> ActiveMDS
        MDSMap --> StandbyMDS
        MDSMap --> FSMap
    end

    Monitor[Monitor Cluster] --> MDSMap
    MDSMap --> ClientView[Client View]
    MDSMap --> MDSInstances[MDS Instances]

核心功能：

  • MDS集群成员管理
  • Rank分配和故障转移
  • 文件系统到MDS的映射
  • 状态同步和版本控制

关键配置参数：

1
2
3
4
5
6

# 设置最大活动MDS数量
ceph fs set <fsname> max_mds <count>

# 查看MDS状态
ceph mds stat
ceph fs status <fsname>

Session管理模块

Session管理模块负责处理客户端连接和会话状态维护。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

graph TB
    subgraph "Session Management"
        SessionMgr[Session Manager]
        ClientSessions[Client Sessions]
        SessionCache[Session Cache]
        Capabilities[Capability Grants]

        SessionMgr --> ClientSessions
        SessionMgr --> SessionCache
        SessionMgr --> Capabilities

        subgraph "Session State"
            Opening[Opening]
            Open[Open]
            Stale[Stale]
            Killing[Killing]
        end

        ClientSessions --> Opening
        ClientSessions --> Open
        ClientSessions --> Stale
        ClientSessions --> Killing
    end

    Clients[CephFS Clients] --> SessionMgr
    Monitor[Monitor] --> SessionMgr
    MDCache[MDS Cache] --> Capabilities

核心功能：

  • 客户端连接认证
  • 会话生命周期管理
  • Capability分发和回收
  • 会话超时处理

MDCache模块

MDCache是MDS的核心缓存模块，负责元数据的缓存、一致性维护和分布式协调。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

graph TB
    subgraph "MDCache Architecture"
        MDCache[MD Cache Manager]

        subgraph "Cache Structures"
            Inodes[Inode Cache]
            Dentries[Dentry Cache]
            Dirfrags[Dirfrag Cache]
        end

        subgraph "Cache Operations"
            Fetch[Fetch Operations]
            Discover[Discovery]
            Migration[Cache Migration]
            Trim[Cache Trimming]
        end

        subgraph "Coherency"
            Locks[Distributed Locks]
            Caps[Capabilities]
            Leases[Client Leases]
        end

        MDCache --> Inodes
        MDCache --> Dentries
        MDCache --> Dirfrags

        MDCache --> Fetch
        MDCache --> Discover
        MDCache --> Migration
        MDCache --> Trim

        MDCache --> Locks
        MDCache --> Caps
        MDCache --> Leases
    end

    RADOS[RADOS Storage] --> Fetch
    Clients[CephFS Clients] --> Caps
    OtherMDS[Other MDS] --> Migration

核心功能：

  • 分布式元数据缓存
  • 缓存一致性协议
  • 元数据预取和预测性缓存
  • 内存管理和LRU淘汰

MDS Balancer模块

负载均衡模块确保元数据负载在多个活动MDS之间均匀分布。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

graph LR
    subgraph "MDS Balancer"
        Balancer[Load Balancer]

        subgraph "Metrics Collection"
            CPUMetrics[CPU Usage]
            MemMetrics[Memory Usage]
            IOMetrics[I/O Metrics]
            ClientLoad[Client Load]
        end

        subgraph "Balancing Strategies"
            HotSpot[Hot Spot Detection]
            Migration[Directory Migration]
            Fragmentation[Dir Fragmentation]
        end

        Balancer --> CPUMetrics
        Balancer --> MemMetrics
        Balancer --> IOMetrics
        Balancer --> ClientLoad

        Balancer --> HotSpot
        Balancer --> Migration
        Balancer --> Fragmentation
    end

    MDSRanks[MDS Ranks] --> Balancer
    MDCache --> Migration
    Monitor --> Balancer

核心配置：

1
2
3
4
5
6

# 启用MDS负载均衡
ceph config set mds mds_bal_mode 2

# 设置负载均衡阈值
ceph config set mds mds_bal_need_min 0.2
ceph config set mds mds_bal_need_max 1.25

日志和恢复模块

MDS Journal模块负责元数据操作的持久化日志记录和故障恢复。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38

graph TB
    subgraph "Journal & Recovery"
        Journal[MDS Journal]

        subgraph "Journal Operations"
            LogEvents[Log Events]
            Segments[Journal Segments]
            Trimming[Log Trimming]
        end

        subgraph "Recovery Process"
            Replay[Journal Replay]
            Resolution[Conflict Resolution]
            Cleanup[Recovery Cleanup]
        end

        subgraph "Storage Backend"
            MDSPool[Metadata Pool]
            Objects[Journal Objects]
            RADOS_Journal[RADOS Backend]
        end

        Journal --> LogEvents
        Journal --> Segments
        Journal --> Trimming

        Journal --> Replay
        Journal --> Resolution
        Journal --> Cleanup

        Journal --> MDSPool
        Journal --> Objects
        Journal --> RADOS_Journal
    end

    MDSOperations[MDS Operations] --> LogEvents
    StandbyMDS[Standby MDS] --> Replay
    Monitor --> Resolution

MDS状态机和生命周期

MDS状态转换图

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

stateDiagram-v2
    [*] --> boot
    boot --> standby
    standby --> standby_replay
    standby_replay --> resolve
    resolve --> reconnect
    reconnect --> rejoin
    rejoin --> active
    active --> stopping
    stopping --> [*]

    active --> resolve : failover
    standby --> resolve : takeover
    active --> standby : rank_stop

    note right of active
        正常工作状态
        处理客户端请求
    end note

    note right of standby
        待机状态
        等待分配rank
    end note

    note right of resolve
        解决元数据冲突
        处理分布式状态
    end note

MDS启动和初始化流程

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

sequenceDiagram
    participant Monitor as Monitor
    participant MDS as MDS Daemon
    participant RADOS as RADOS
    participant Standby as Standby MDS

    MDS->>Monitor: 注册为standby
    Monitor->>MDS: 分配rank
    MDS->>RADOS: 读取journal
    MDS->>MDS: 回放journal
    MDS->>Monitor: 报告active状态
    Monitor->>Standby: 通知状态变化
    MDS->>MDS: 开始处理客户端请求

MDS与上下游组件关系

MDS与Monitor的交互

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22

graph LR
    subgraph "MDS-Monitor Interaction"
        MDS[MDS Daemon]
        Monitor[Monitor Cluster]

        subgraph "Information Exchange"
            MDSMap_Update[MDSMap Updates]
            Health_Report[Health Reports]
            Beacon[MDS Beacon]
            Commands[Admin Commands]
        end

        MDS --> MDSMap_Update
        MDS --> Health_Report
        MDS --> Beacon
        Monitor --> Commands

        MDSMap_Update --> Monitor
        Health_Report --> Monitor
        Beacon --> Monitor
        Commands --> MDS
    end

关键监控命令：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# 查看MDS健康状态
ceph health detail

# 检查慢速元数据IO
ceph mds perf dump

# 查看MDS告警
ceph health mute MDS_SLOW_REQUEST

# MDS性能统计
ceph daemon mds.<name> perf dump

MDS与RADOS的交互

MDS通过RADOS存储所有持久化元数据：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

graph TB
    subgraph "MDS-RADOS Interaction"
        MDS[MDS Daemon]

        subgraph "RADOS Operations"
            MetadataIO[Metadata I/O]
            JournalIO[Journal I/O]
            BackingStore[Backing Store Ops]
        end

        subgraph "RADOS Pools"
            MetadataPool[Metadata Pool]
            DataPool[Data Pool]
        end

        MDS --> MetadataIO
        MDS --> JournalIO
        MDS --> BackingStore

        MetadataIO --> MetadataPool
        JournalIO --> MetadataPool
        BackingStore --> DataPool
    end

    LIBRADOS[librados] --> MetadataPool
    LIBRADOS --> DataPool

MDS与客户端的交互

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

sequenceDiagram
    participant Client as CephFS Client
    participant MDS as MDS Active
    participant RADOS as RADOS

    Client->>MDS: 建立session
    MDS->>Client: 分发capabilities
    Client->>MDS: 元数据请求(open/mkdir/stat)
    MDS->>RADOS: 读取/更新元数据
    RADOS->>MDS: 返回结果
    MDS->>Client: 返回元数据
    Client->>MDS: 释放capabilities
    MDS->>Client: 确认释放

MDS常见故障诊断和恢复

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11

# 检查MDS状态
ceph fs status
ceph mds stat


# MDS性能分析
ceph daemon mds.<name> perf dump
ceph daemon mds.<name> dump cache

# 检查客户端连接
ceph daemon mds.<name> session ls

MDS监控和告警

关键性能指标

1
2
3
4
5
6
7
8

# MDS性能监控
ceph daemonperf mds

# 关键指标：
# - mds.inodes: 缓存的inode数量
# - mds.reply_latency: 响应延迟
# - mds.request_rate: 请求速率
# - mds.sessions: 活动会话数

告警配置

重要告警项目：

  • MDS_SLOW_REQUEST: 慢请求告警
  • MDS_SLOW_METADATA_IO: 慢元数据IO
  • MDS_INSUFFICIENT_STANDBY: 待机MDS不足
  • MDS_HEALTH_READ_ONLY: MDS只读状态
