As OSD are replaced and the cluster scales in and out, the distribution of PGs across OSDs becomes increasingly unbalanced. This leads to discrepancies in actual usage rates of individual OSDs, reducing the overall utilization rate of cluster. The ceph balancer module addresses this by adjusting weights or specifying PG mappings via upmap to redistribute PGs evently.
This article analyzes the execution flow when using balancer upmap mode, based on the ceph Pacific version.
balancer module execution flow

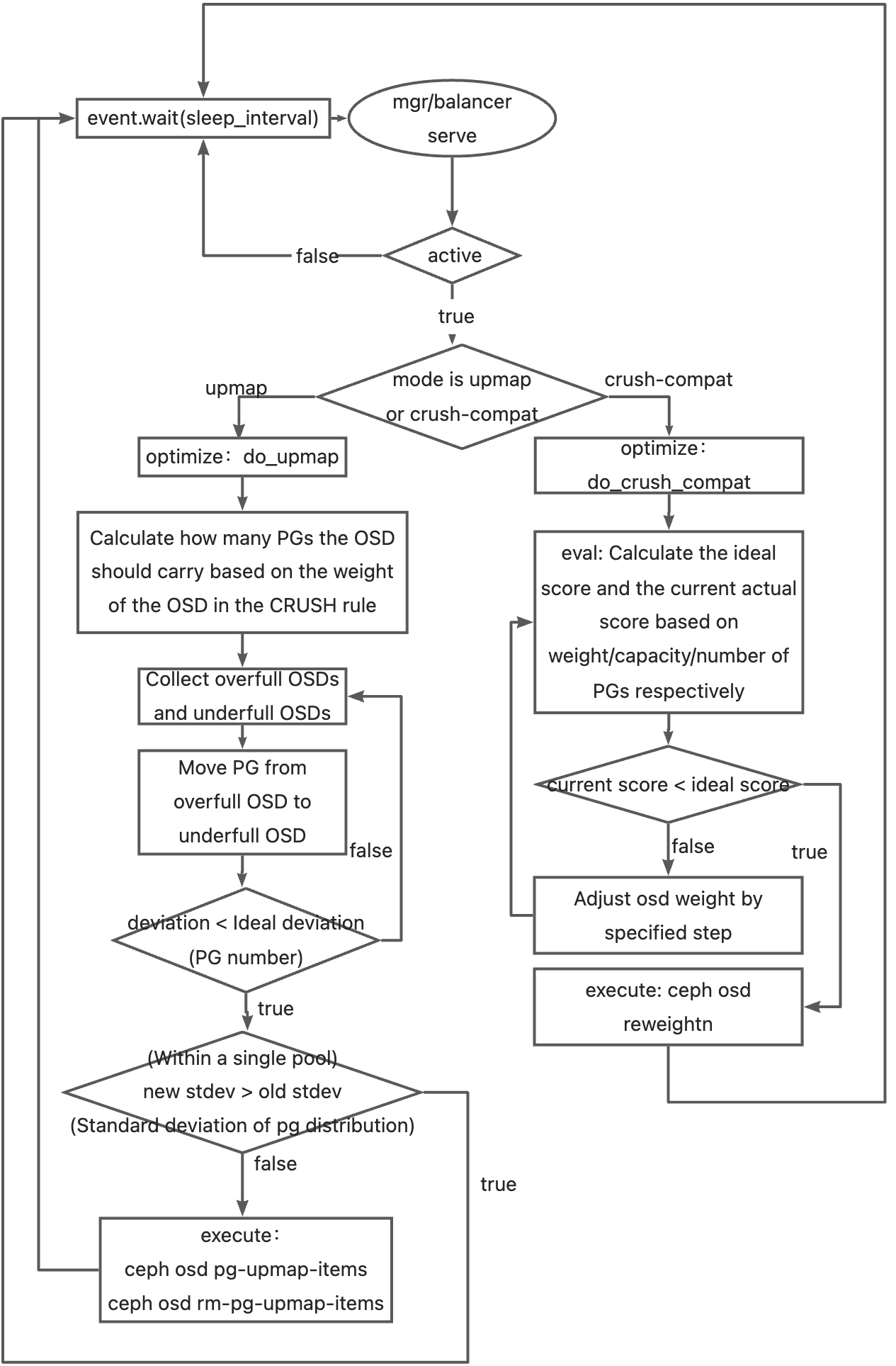

Overview diagram of the balancer module execution flow:
The balancer has two modes: upmap and crush-compat.
Only one can be active at a time. Below is a comparison of two modes:
Implementation method
crush-compat: Generates a separate choose_argslist in the crush map, which contains adjusted weight sets used to influence PGs distribution. You can view it using ceph crush dump. Example:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
|
"choose_args": {
"-1": [
{
"bucket_id": -1,
"weight_set": [
[
0.1983489990234375,
0.1943206787109375,
0.1934051513671875
]
]
},
{
"bucket_id": -2,
"weight_set": [
[
0.1983489990234375,
0.1943206787109375,
0.1934051513671875
]
]
},
{
"bucket_id": -3,
"weight_set": [
[
0.1060638427734375,
0.09228515625
]
]
},
{
"bucket_id": -4,
"weight_set": [
[
0.1060638427734375,
0.09228515625
]
]
},
{
"bucket_id": -5,
"weight_set": [
[
0.096160888671875,
0.0981597900390625
]
]
},
{
"bucket_id": -6,
"weight_set": [
[
0.096160888671875,
0.0981597900390625
]
]
},
{
"bucket_id": -7,
"weight_set": [
[
0.0999908447265625,
0.093414306640625
]
]
},
{
"bucket_id": -8,
"weight_set": [
[
0.0999908447265625,
0.093414306640625
]
]
}
]
}
|
upmap: Creates explicit PG-to-OSD mappings in the osdmap. For example, this line:
pg_upmap_items 3.1e [5,2] means PG 3.1e is remapped from osd.5 to osd.2.
You can view all mappings use ceph osd dump:
1
2
3
4
5
6
|
pg_upmap_items 3.1e [5,2]
pg_upmap_items 3.27 [4,0]
pg_upmap_items 3.28 [5,2]
pg_upmap_items 3.29 [5,2]
pg_upmap_items 3.33 [5,2]
pg_upmap_items 3.3e [5,2]
|
Version compatibility
crush-compat: Compatible with all ceph client versions. Clients will use the ajusted weights in choose_argsfrom the CRUSH map.upmap: Not supported by clients older then version Luminous.
Scope of impact
crush-compat: Controls PG distribution by weight, but cannot limit which PGs are remapped.
upmap: Allow configuration of the maximum number of PG deviation and the number of PGs that can be remmaped in each round of adjustment, offering finer control.
upmap mode execution flow

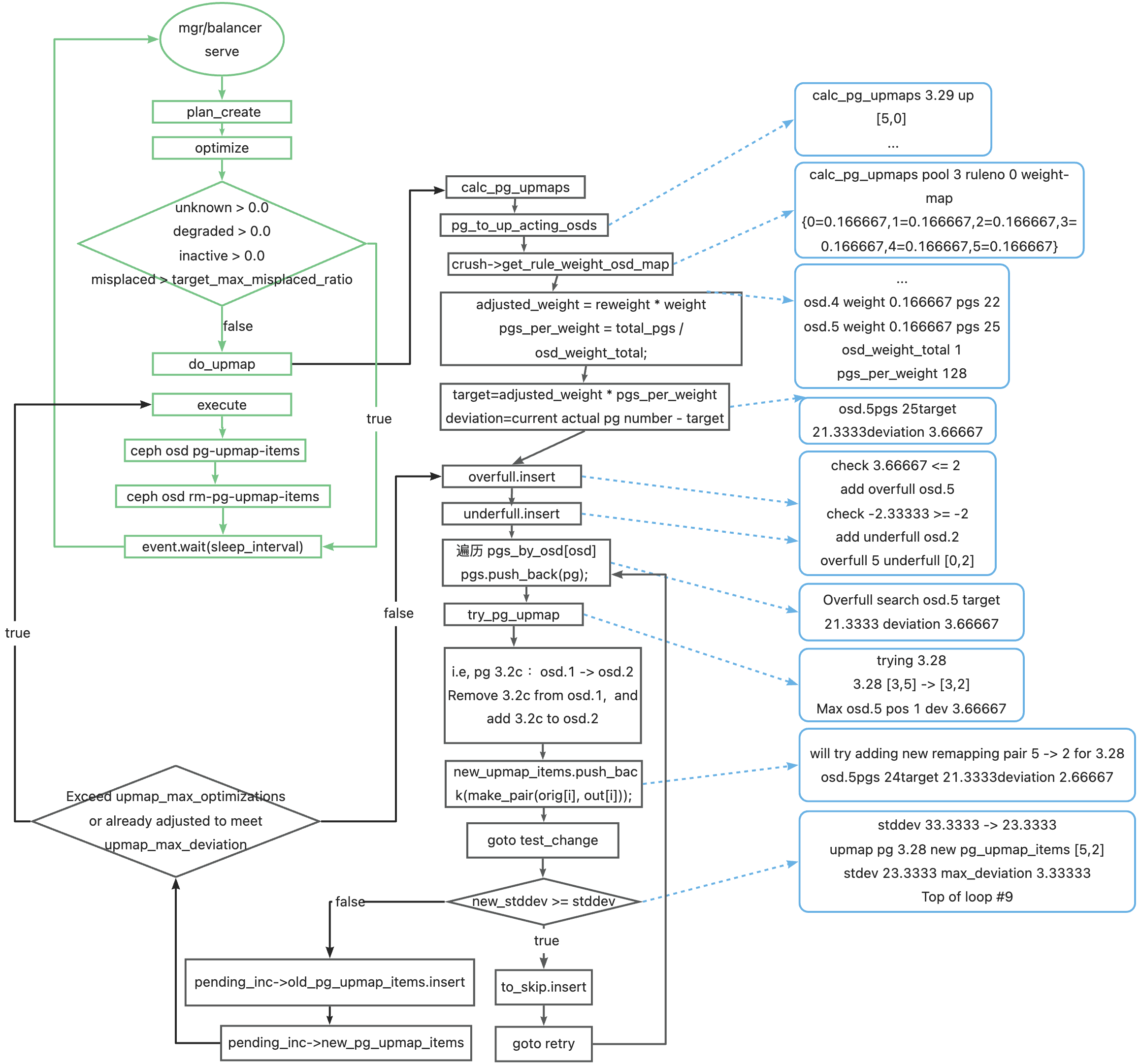

Enable detailed OSD logs with ceph tell mgr.* config set debug_osd 30/30, the content within the blue box is log print information.
The diagram shows the execution flow of changing the up_setof PG 3.28 from [3,5] to [3,2] in a two replica pool, e.g., moving PG 3.28 from osd.5 to osd.2.
Parameters
1
2
3
|
mgr/balancer/begin_time: start time (HHMM), e.g., 0000 mgr/balancer/end_time：end time (HHMM), e.g., 0100 mgr/balancer/begin_weekday：start weekday，can take value 1、2、3、4、5、6、7, e.g., 2
mgr/balancer/end_weekday：end weekday，can take value 1、2、3、4、5、6、7，e.g., 7
mgr/balancer/sleep_interval：time in seconds the balancer sleeps before running again，e.g., 180
|
1
2
3
|
mgr/balancer/active：whether to enable the balancer module，true/false，e.g., true
mgr/balancer/mode：balancer mode (upmap or crush-compat)，e.g., upmap
mgr/balancer/upmap_max_deviation：Allowed max deviation in pg between osd，e.g., 5 mgr/balancer/upmap_max_optimizations：Maximum number of adjustments, e.g., 10
|
1
2
|
mgr/balancer/crush_compat_max_iterations：Maximum number of iterations for adjustments，e.g., 25
mgr/balancer/crush_compat_metrics：metrics for score calculation，e.g., pgs,objects,bytes mgr/balancer/crush_compat_step：step size for weight adjustment, e.g., 0.500000 mgr/balancer/min_score：target score to complete balancing，e.g., 0.020000 mgr/balancer/mode：balancer mode，e.g., crush-compat
|
Testing
runceph config set mgr mgr/balancer/upmap_max_deviation 2 command，waiting for balancer to complete……
Before balancing：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
[root@ceph-01 ~]# ceph osd df tree
ID CLASS WEIGHT REWEIGHT SIZE RAW USE DATA OMAP META AVAIL %USE VAR PGS STATUS TYPE NAME
-1 0.58612 - 600 GiB 81 GiB 74 GiB 408 MiB 6.4 GiB 519 GiB 13.50 1.00 - root default
-3 0.19537 - 200 GiB 27 GiB 25 GiB 139 MiB 2.1 GiB 173 GiB 13.56 1.00 - host ceph-01
2 hdd 0.09769 1.00000 100 GiB 11 GiB 9.7 GiB 72 MiB 1008 MiB 89 GiB 10.76 0.80 23 up osd.2
5 hdd 0.09769 1.00000 100 GiB 16 GiB 15 GiB 67 MiB 1.1 GiB 84 GiB 16.36 1.21 31 up osd.5
-5 0.19537 - 200 GiB 30 GiB 27 GiB 92 MiB 2.8 GiB 170 GiB 15.09 1.12 - host ceph-02
1 hdd 0.09769 1.00000 100 GiB 15 GiB 13 GiB 37 MiB 1.5 GiB 85 GiB 14.84 1.10 28 up osd.1
4 hdd 0.09769 1.00000 100 GiB 15 GiB 14 GiB 55 MiB 1.3 GiB 85 GiB 15.35 1.14 29 up osd.4
-7 0.19537 - 200 GiB 24 GiB 22 GiB 177 MiB 1.6 GiB 176 GiB 11.86 0.88 - host ceph-03
0 hdd 0.09769 1.00000 100 GiB 11 GiB 9.8 GiB 107 MiB 1.1 GiB 89 GiB 10.99 0.81 25 up osd.0
3 hdd 0.09769 1.00000 100 GiB 13 GiB 12 GiB 70 MiB 501 MiB 87 GiB 12.72 0.94 27 up osd.3
TOTAL 600 GiB 81 GiB 74 GiB 408 MiB 6.4 GiB 519 GiB 13.50
MIN/MAX VAR: 0.80/1.21 STDDEV: 2.15
|
After balancing：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
|
[root@ceph-01 ~]# ceph osd df tree
ID CLASS WEIGHT REWEIGHT SIZE RAW USE DATA OMAP META AVAIL %USE VAR PGS STATUS TYPE NAME
-1 0.58612 - 600 GiB 82 GiB 74 GiB 408 MiB 7.0 GiB 518 GiB 13.60 1.00 - root default
-3 0.19537 - 200 GiB 27 GiB 25 GiB 139 MiB 2.3 GiB 173 GiB 13.70 1.01 - host ceph-01
2 hdd 0.09769 1.00000 100 GiB 14 GiB 13 GiB 72 MiB 1.3 GiB 86 GiB 13.93 1.02 28 up osd.2
5 hdd 0.09769 1.00000 100 GiB 13 GiB 12 GiB 67 MiB 1.1 GiB 87 GiB 13.47 0.99 26 up osd.5
-5 0.19537 - 200 GiB 28 GiB 25 GiB 92 MiB 2.8 GiB 172 GiB 14.17 1.04 - host ceph-02
1 hdd 0.09769 1.00000 100 GiB 14 GiB 13 GiB 37 MiB 1.5 GiB 86 GiB 14.23 1.05 27 up osd.1
4 hdd 0.09769 1.00000 100 GiB 14 GiB 13 GiB 55 MiB 1.3 GiB 86 GiB 14.10 1.04 27 up osd.4
-7 0.19537 - 200 GiB 26 GiB 24 GiB 177 MiB 1.8 GiB 174 GiB 12.93 0.95 - host ceph-03
0 hdd 0.09769 1.00000 100 GiB 13 GiB 12 GiB 107 MiB 1.4 GiB 87 GiB 13.14 0.97 28 up osd.0
3 hdd 0.09769 1.00000 100 GiB 13 GiB 12 GiB 70 MiB 501 MiB 87 GiB 12.72 0.94 27 up osd.3
TOTAL 600 GiB 82 GiB 74 GiB 408 MiB 7.0 GiB 518 GiB 13.60
MIN/MAX VAR: 0.94/1.05 STDDEV: 0.54
|
The deviation in the number of PGs on the OSDs is now less than or equal to the set value of 2, the CRUSH rule have not been changed, and the utilization rate of the OSDs has become balanced.
